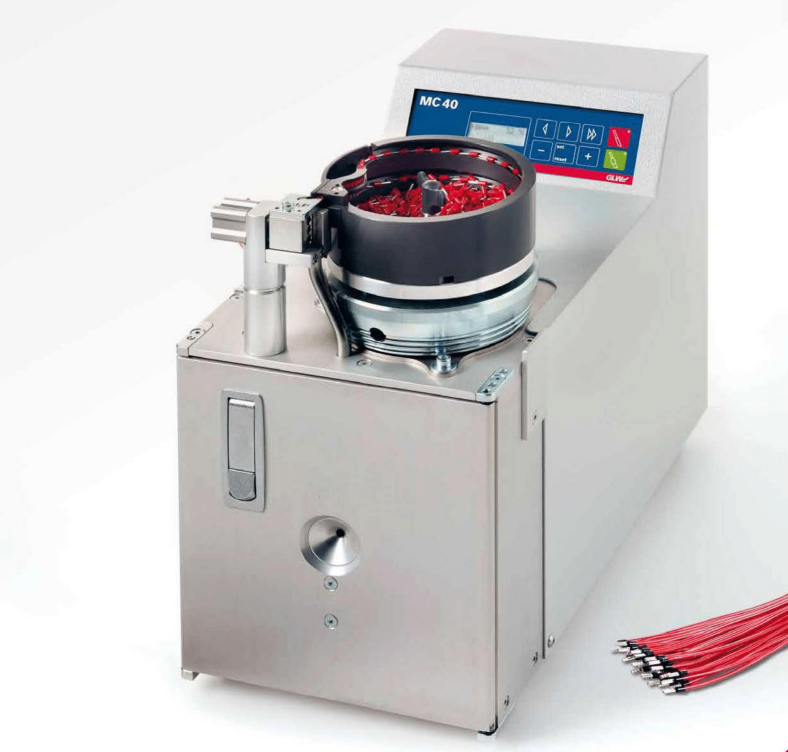

MC 40-1
• Electro-pneumatic stripping and crimping machine
• Stripping and crimping in one work step
• Cost savings through processing of loose wire end sleeves (ferrules)
• Quick change of cross-sections and length in a few seconds
• Only 0.8 seconds cycle time
• Processes over 30 different wire end sleeves
• High level of reliability due to maintenance and wear-free components
MC 40-1
INformações do produto
• Cross section: 0.5 – 1.5 mm²
• Crimp length: 6 – 12 mm
• Tool kits: 0.25 mm² / 2,5 mm² / 4 mm²
• Cycle time: 1.2 s
• Speed up cycle time: 0.8 s
• Power supply: 110 – 240 VAC / 50 – 60 Hz
• Compressed air supply: 5 bar / 0.5 MPa
• Dimensions (L x W x H): 550 x 250 x 412 mm (21.7x 9.8x 16.2″)
• Weight: 27 kg / 60 lbs
• Part no.: 006218
