• Raw Material Diameter: Up to 12 mm (0.47″) with dancer arm accumulator
• Reel Diameter: 630 mm (24.8″)
• Reel Arbor Diameter: 30 mm (1.18“)
• Reel Width: 475 mm (18.7″)
• Reel Weight: 40 kg / 80 kg (88.18 / 176.37 lbs.)
• Rotating Speed: 265 rpm
• Power Supply: 100/115 VAC at 60 Hz or 240 VAC at 50 Hz
• Compressed Air Connection: 6 bar (90 psi) required for dancer arm pressure control
• Dimensions (L x W x H): 1,300 x 1,100 x 1,430 mm (51.18 x 43.3 x 56.29″)
• Weight: 105 kg (231.48 lbs.)

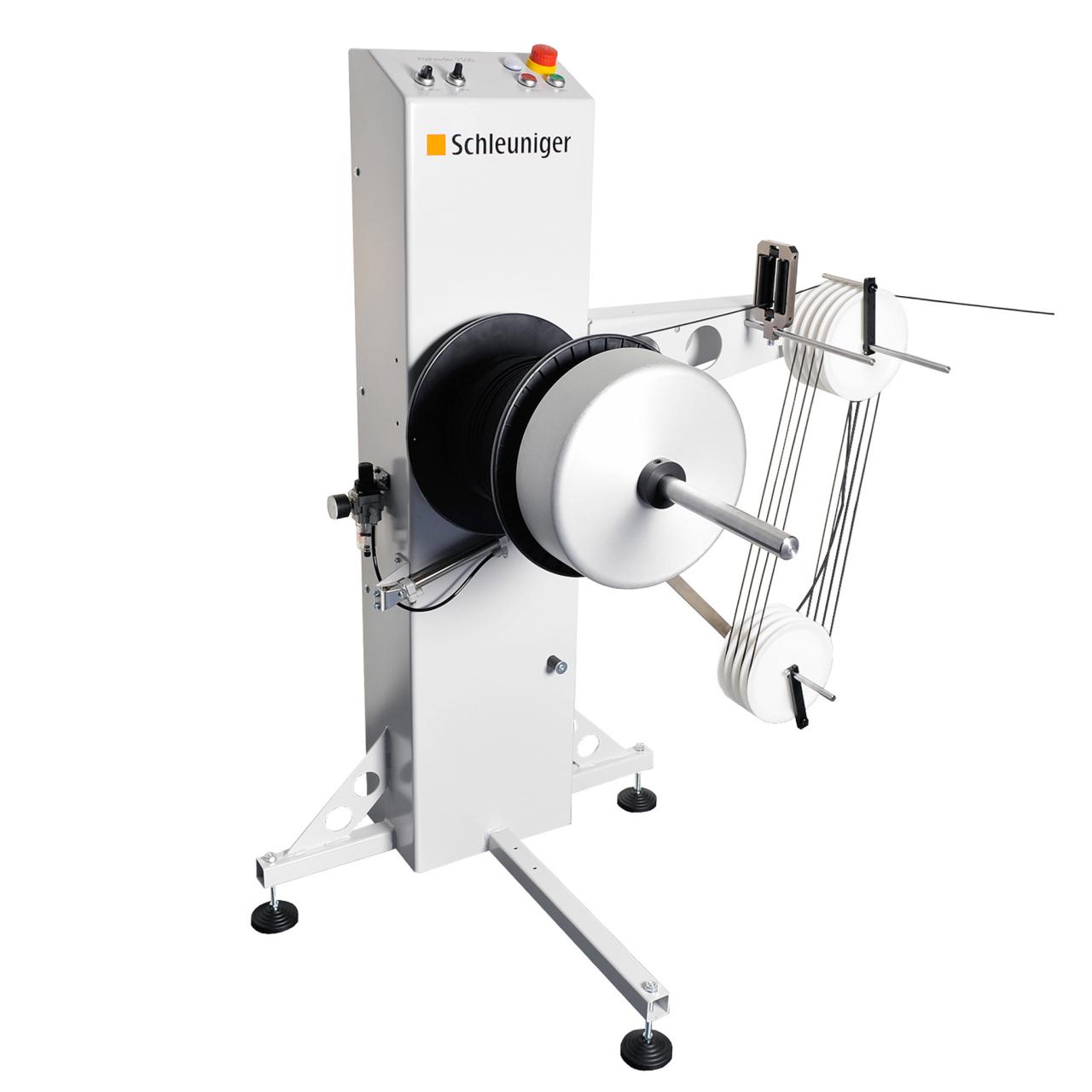

• CE-Conformity: The PreFeeder 2500 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
• Important Note: Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
