PF1100
PF1100

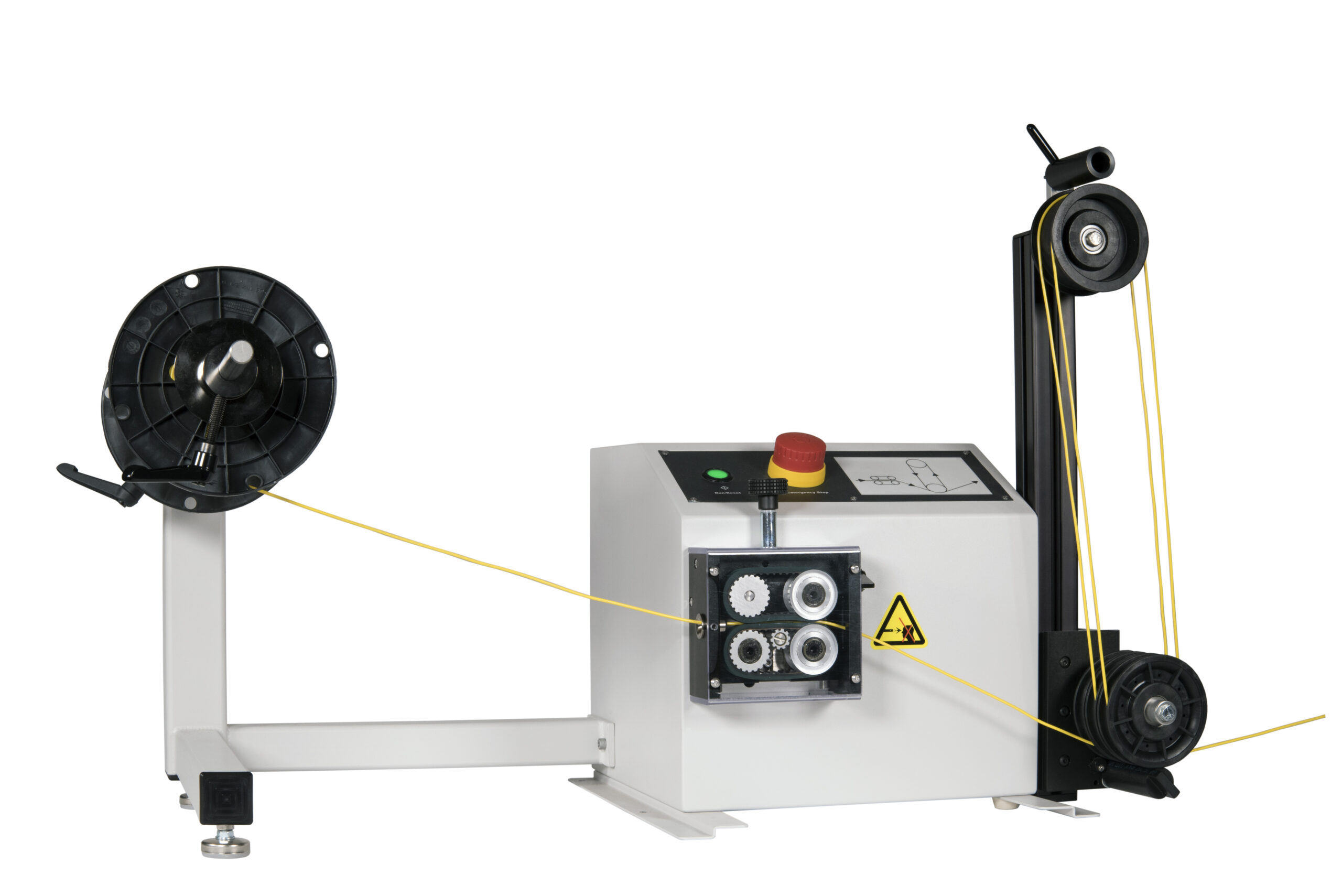

The PreFeeder 1100 is a solid and reliable benchtop, electric prefeeding machine for cable reels up to 20 kg (44.4 lbs.) and 457 mm (18″) in diameter. This low-cost unit is ideal for feeding wires and cables off small to medium sized spools.
Features
• Belt drive with adjustable feed belt pressure prevents damage to the cable during transport
• Standard interface for connecting to cutting and/or cutting and stripping machines
• Suitable for a wide variety of cables
• Quick lock cam mechanism for easy cable loading and fast changeover
• Pulls cables from racks or barrels
PF1100
INformações do produto
• Raw Material Diameter: Maximum 6.0 mm (0.236”) [Guide tube clearance: 7 mm (0.280)]
• Reel Diameter: Maximum 457 mm (18”)
• Reel Width: Maximum 305 mm (12”)
• Spool Weight: Maximum 20 kg (44 lbs.)
• Pulling Speed: 0.0 – 1.8 m/s (0.0 – 5.9 ft/s)
• Accumulator Storage Capacity: 0.90 m (2.8 ft)
• Motor: 1/8 HP DC
• Power Supply: 100, 120, 220, 240 VAC; 50 – 60 Hz/120 VA
• Dimensions (L x W x H): Without cable reel holder: 457 x 419 x 500 mm (17.9 x 16.4 x 19.6”) / With cable reel holder: 785 x 419 x 500 mm (30.9 x 16.4 x 19.6”)
• Weight: 17 kg (38 lbs.)
• CE-Conformity: The PreFeeder 1100 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
• Important Note: Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
