PC3700

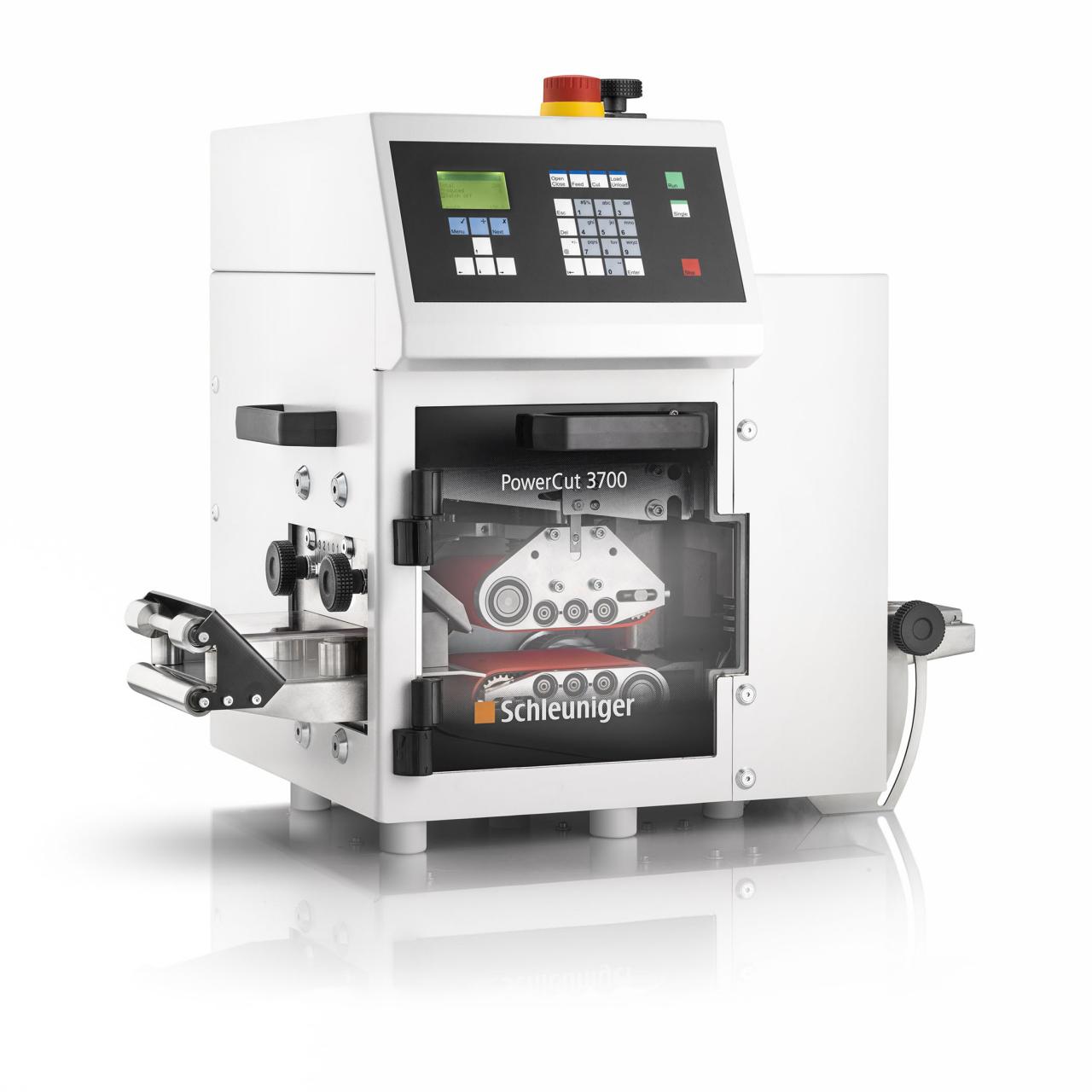

The PowerCut 3700 is the ideal solution for processing larger cable dimensions. It precisely cuts wire, round and flat cable, Glass Optical Fiber (GOF), tubing material, foil and more up to 70 mm² (AWG 2/0) and 25 mm (0.98 “) OD. This automatic cutting machine presents an excellent price/performance ratio.
• High production throughput
• Excellent accuracy & repeatability
• Heavy duty cutter head
• Flexible interfaces
• Outstanding price/performance ratio

Function
• Pneumatic cutter head with short cycle times
• Rugged belt-feed transport unit for high pull forces
• Automatic cable detection device for gap adjustment and cable end detection
• Roller-guided cable inlet and universally adjustable cable guides
• Easy, user-friendly programming interface
• Flexible interfaces for active and passive peripheral machines and printing systems

Customer Benefits

High productivity:
• High throughput thanks to high cutting rate and transport speed
• Short changeover times

Easy handling and supervision of the system:
• Logic and clearly layed out menue structure with integrated wire and cable memory
• Fast and easy programming at the push of just a few buttons
• Precise adjustment of the cable guides using an easy-to-read scale

Outstanding price / performance ratio:
• Heavy-duty cutter head
• Powerful belt feed system for sensitive cable feeding
• Open, flexible interfaces for peripheral devices

PC3700

INformações do produto

• Raw Material Diameter: Maximum 25 mm (1.0”), tubes up to 20 mm (0.8”)
• Raw Material Width: Maximum 82 mm ( 3.22“)
• Conductor Cross-Section: Maximum 70 mm2 (2/0 AWG)
• Feed Rate: 4.5 m/s (14.76 ft/s)
• Production Rate: Length: 100 mm (4”) ~ 7’600 pcs./hr. / Length: 2‘000 mm (79”) ~ 3’750 pcs./hr.
• Interfaces: RS 232, foot pedal, standard prefeed and hotstamp
• Optional: PF-Prefeed / WS-Postfeed-interface (synchronized)
• Power Supply: 230 VAC (115 VAC input optional transformer)
• Compressed Air Connection: 6 bar (90 psi)
• Noise Level: <70 db (A)
• Dimensions (L × W × H): 640 x 440 x 530 mm (25.19 x 17.32 x 20.86”)
• Weight: 65 kg (143.3 lbs)
• CE-Conformity: The PowerCut 3700 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
• Important Note: Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
