Mira 230
Wire processing today involves a large mix of products as requirements become ever more complex. The Mira 230 and Mira 230 Q from Komax are the answer to this situation. The wire strippers deliver an extraordinarily wide range of applications, simple handling and increased productivity. With special functions and their article library, the models achieve a high level of reproducible quality. The Mira 230 Q now features integrated ACD (Automatic Conductor Detector) incision monitoring. Their ability for sequence processing and the smart design make them the first choice for multi-conductor stripping.
Largest processing range in their class

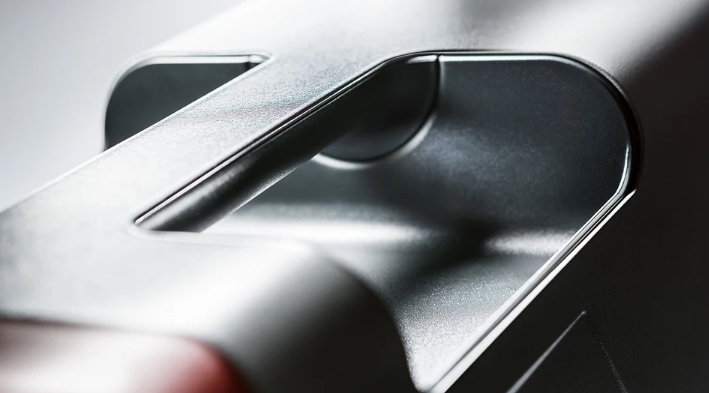

• Sturdily built to accommodate high cutting and stripping forces
• Large processing range up to 8 mm²/AWG 8
• Unique scope of functions, including sequence processing
Maximum productivity

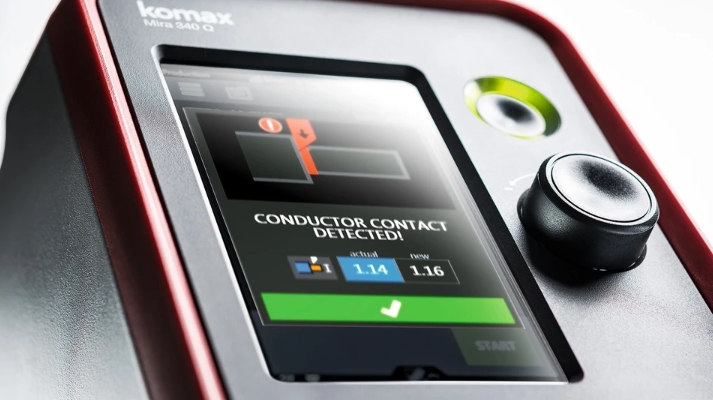

• Incision/quality monitoring and automatic adjustment with ACD technology

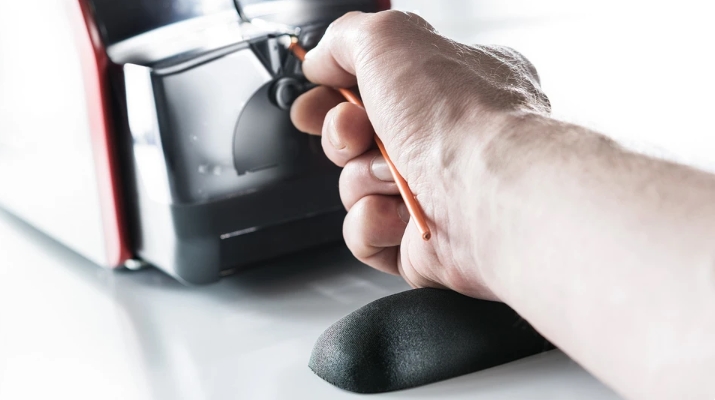

• Multi-conductor processing in a single step
• Fast access to frequently used functions
• Function to call up stored articles for reproduction
Reproducible quality
• Production based on verified data stored in the library
• Password-protected access to the settings
• Integrated air jet for automatic blade cleaning
Mira 230
INformações do produto
• Wire cross section (stripping): 0.03 – 8 mm², AWG 32 – 8¹)
• Max. outer diameter: 6.5 mm (0.256 in.)
• Stripping length with cutting: 1.5 to 46 mm (0.06 to 1.81 in.)
• Cutting length (CL): = 46 – StrL mm (= 1.81 – StrL in.)
• Pull off length: up to 46 mm (1.81 in.)
• Max. CD for Cutting: 2 mm
• Increment for incision diameter: 0.01 mm (0.0004 in.)
• Increment for stripping length: 0.01 mm (0.0004 in.)
• Min. breakout length with standard grippers: 11 mm (0.43 in.)
• Min. breakout length with thin grippers (option): 8 mm (0.31 in.)
• Article library – max. number of articles: 1500
• Sequence function – max. number of steps: 100
• Incision monitoring: ACD (Automatic Conductor Detector) for Mira 230 Q
• Typical cycle time: 0.35 s
• Electrical connection: 100 – 240 V AC, 120 VA
• Compressed air connection (air jet for cleaning): 5 – 7 bar
• Screen size: 5”
• Switch-on time from standby mode: < 1 s
• Ambient temperature for operation: 5 – 40 °C
• Dimensions (W × H × D): 141 × 290 × 473 mm (5.5 × 11.4 × 18.6 in.)
• Weight: 11 kg (24 lbs.)
• CE conformity: Conforms to the EU directives on machine safety and electromagnetic compatibility.
