MS9680

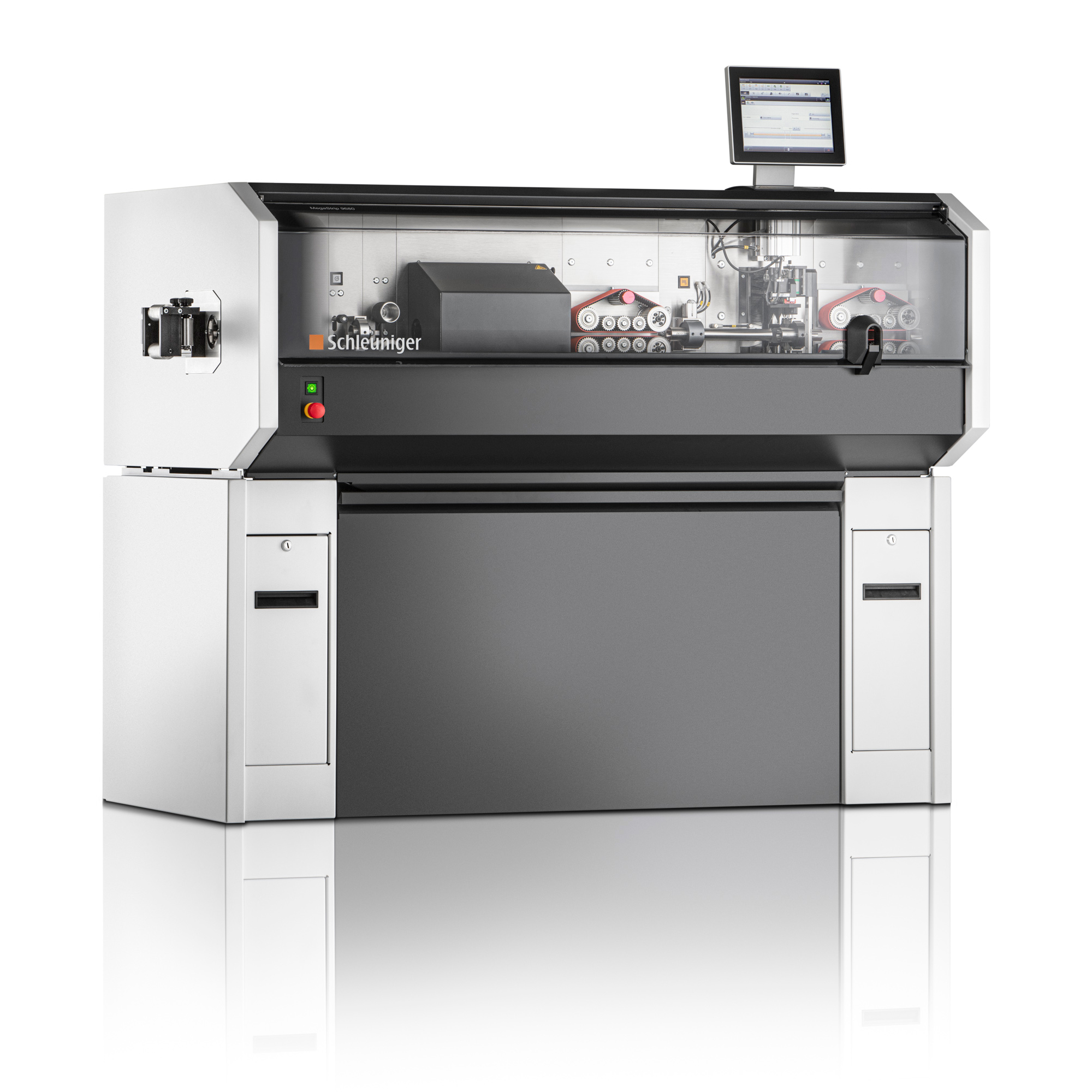

The MegaStrip 9680 is an automatic cut and strip machine for processing single core wires, multiconductor cables and shielded cables up to 35 mm (1.38″) in outer diameter. The modular design and the possibility to connect various peripherals – either from the Schleuniger product range or from third-party suppliers – make this machine a true all-rounder.
• Two modular machine designs with additional options offer an extensive processing range for larger diameter cables.

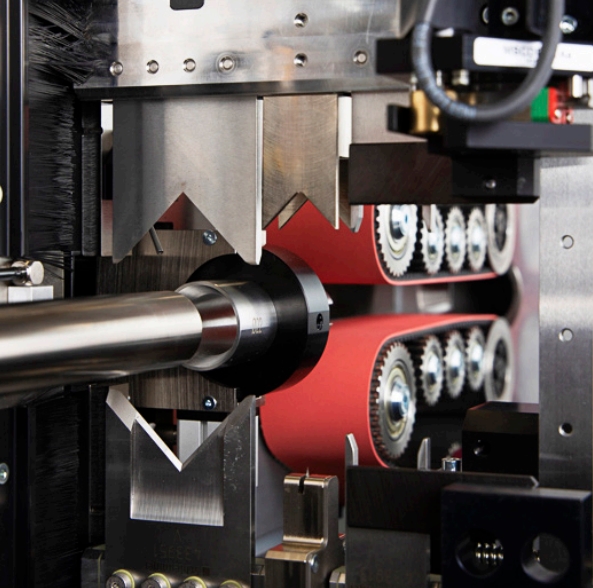

• Precise, multistep stripping thanks to the Schleuniger multiblade cutting unit and SmartDetect quality monitoring system
• High flexibility thanks to the SmartBlade system with exchangeable cartridges for the quick changeover of complete blade sets
• Extensive libraries for recurring cable end types and processing methods simplify programming
• Economical production and waste avoidance using up to two independent inkjet printers positioned downstream of the cutter head
• Compatible with MES CAO via SMG Server and CAYMAN software

Concept
The MegaStrip 9680 M model features Schleuniger’s patented multiple blade position cutter head for multistep operations. The MR model adds a rotary incision unit for high-precision shield cutting. Both models come standard with the SmartBlade system, allowing quick blade changeovers in seconds. The machine can operate with up to 2 different inkjet marking systems. The print head positions are after the cutter head to prevent any waste pieces.

Special Features
• High-precision cutting unit with SmartDetect quality-monitoring system

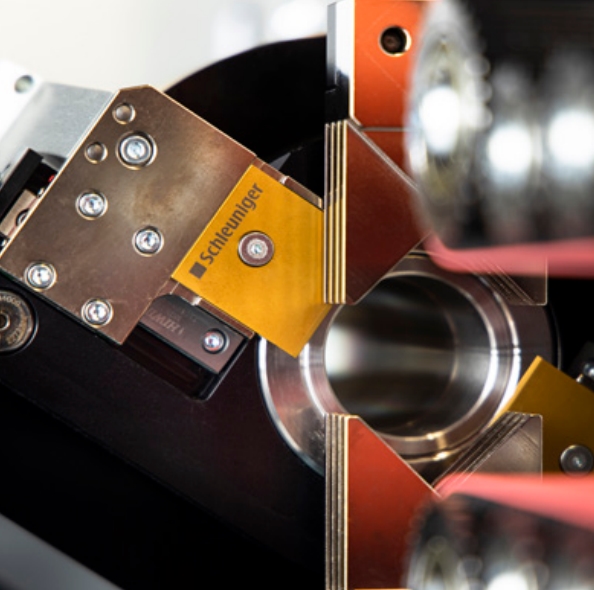

• The rotary cutting unit is based on cutting-edge Schleuniger RX technology and enables maximum precision

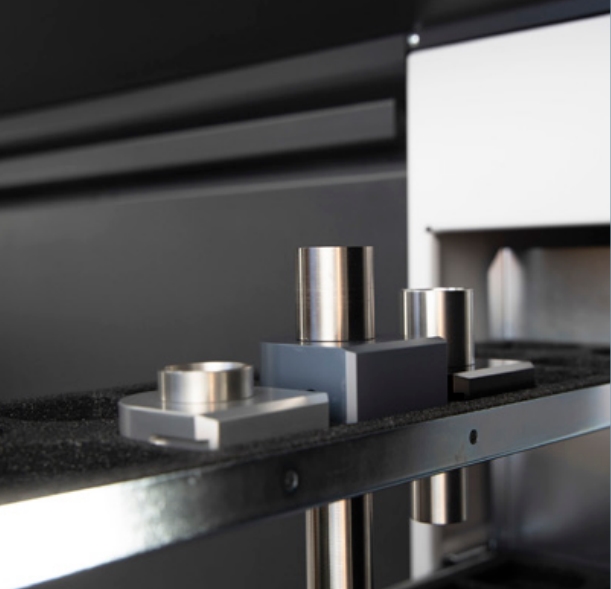

• Color-coded guides simplify operation and reduce setup times

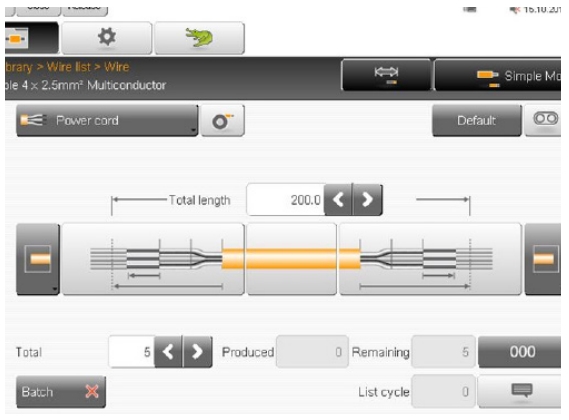

• User-friendly software and intuitive operation via the 10” color touch screen

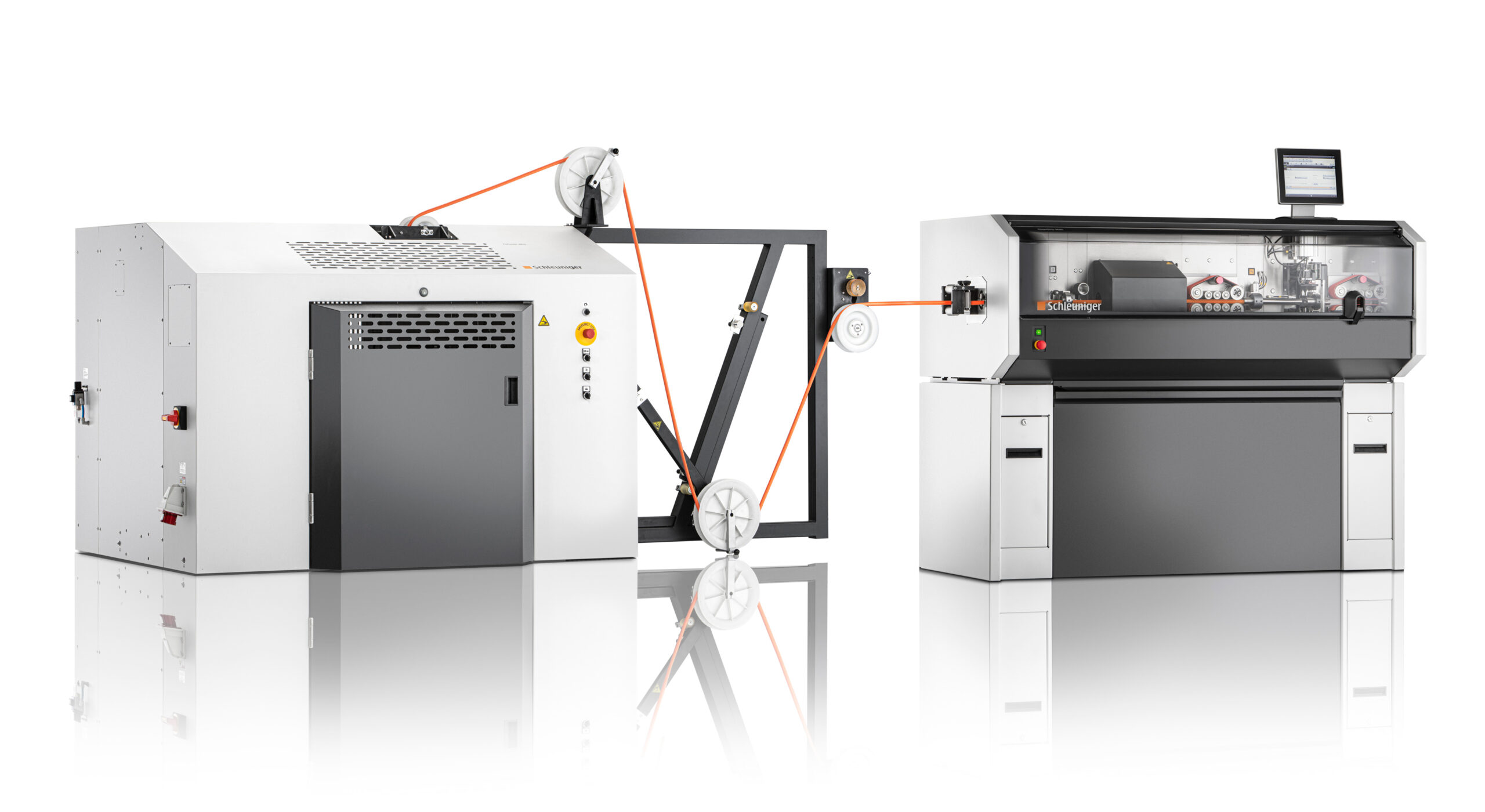

• Modular interfaces for an extensive range of accessories and the connection of peripherals
• Modular design allows future upgrades and thus enables a sustainable investment
• Wide range of accessories available for a customized system

Options
• High cut force device for cutter head
• Universal slitting unit for precise longitudinal slitting
• Jacket and inner conductor stripping
• Standard cartridge for 56 mm / 28 mm (2.20 / 1.10″) blades or custom specific blades
• Up to 2 inkjet printers positioned after the cutter head axis
• CAYMAN cable processing software for PC

MS9680

INformações do produto

• Raw Material Diameter: 2.5 mm – 35 mm (0.0984 – 1.38″)
• Conductor Cross Section: Standard: 1.5 mm² – 120 mm² (16 – 4/0 AWG) / Optional: 240 – 300 mm² (500 MCM – 600 MCM) both depending on cable type
• Workpiece Length: Without short mode: 150 – 1,000,000 mm (5.90″- 39,370”) (standard) / 225 – 1,000,000 mm (8.85″- 39,370”) (2-printer configuration) / With short mode: 0.1 – 150 mm (0.003937 – 5.90″) (standard) / 0.1 – 225 mm (0.003937 – 8.85″) (2-printer configuration)
• Strip Length: 0.1 – 1,000,000 mm (0.003937 – 39,370″)
• Pull-Off Length: Left side: 225 mm (8.85″) (standard) / 300 mm (11.8″) (2-printer configuration)
• Right side: 360 mm (14.2″)
• SmartBlade Blade Cartridge: 2 x 56 mm (2 x 2.20″) / 4 x 28 mm (4 x 1.10”) / 56 + 2 x 28 mm (2.20” + 2 x 1.10″)
• Interfaces: Standard: 3 USB, 2 Ethernet interfaces for PreFeeder, hot stamping and post-processing units
• Optional: 5 additional SMIs (Schleuniger Machine Interface) for up to two labeling systems, different peripherals and emergency-stop circuits
• Power Supply: 3L+N 380/220–415/240 VAC 3L 200–240 VAC 50/60 Hz
• Compressed Air Connection: 6–10 bar (87-145 psi)
• Dimensions (L x W x H): 1,730 x 1,055 x 1,365 mm (68″ x 41.5″ x 54″)
• Weight: M Version Max. 500 kg (1102.3 lbs.) / MR Version Max. 528 kg (1164.02 lbs.)
• Conformity: The MegaStrip 9680 complies with all relevant European directives and international standards (IEC and ISO)
