JS8400
JS8400

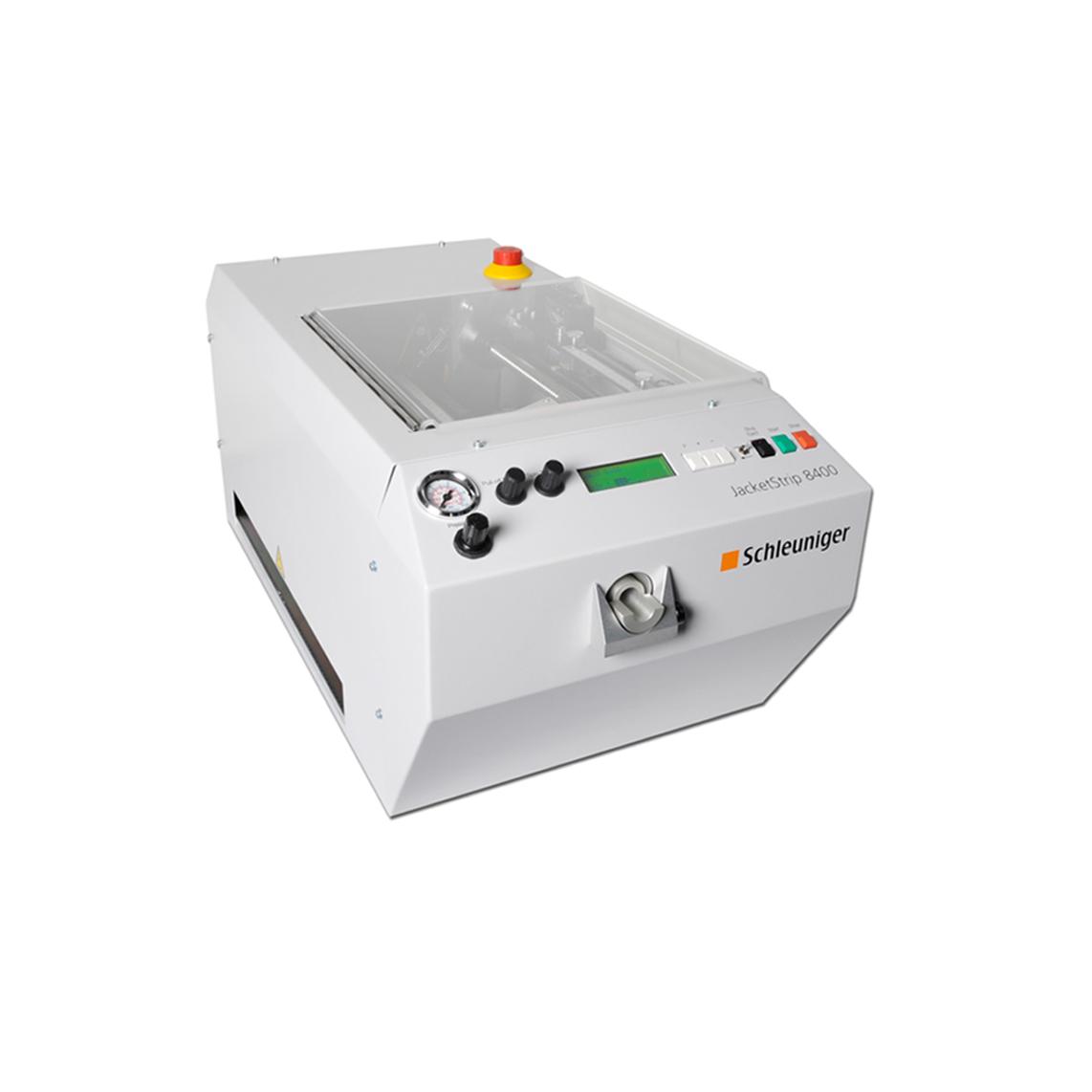

The JacketStrip 8400 automatically strips jackets or insulation from thin, round cables to difficult to hard-to-process power cables with an outer diameter (O.D.) up to 26 mm (1”). This versatile machine performs full strips, partial strips and window strips up to 200 mm (7.87”) stripping length.
• Handles thick cables and tough insulation materials
• Partial and window strip capability
• Rotary incision head with 4-blade technology. No blade changes required
• High flexibility
• Quick return on investment
Adjustable Processing Parameters
• Pull-off speed
• Stripping lengths partial strip
• Stripping lengths full strip
• Rotational speed of the stripping head
• Stripping diameter
• Stripping position
• Feed rate of the stripping blades
• Cable clamping force
Features
• 4-blade system
• Rotary cut
• No blade changes required
• High repeatability
• Versatility
• Window stripping capability
• LCD display for machine diagnostics
JS8400
INformações do produto
• Raw Material Diameter: Maximum 26 mm (1.0”)
• Diameter Precision: 0.1 mm – 0.25 mm (0.004 – 0.01”) / Dependent on Ø
• CE Conformity: The JacketStrip 8400 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
• Strip Length: Adjustable from 7 – 200 mm (0.27 – 7.87”) / Optional 200 – 400 mm (7.87 – 15.74”)
• Pull-Off Length: Adjustable from 20 – 190 mm (0.78” – 7.5”)
• Cycle Time: At least 2.2 s (depending on incision time and stripping)
• Raw Material Type: PVC, PUR, rubber, Teflon, Tefzel, Kapton, etc.
• Interfaces: Foot pedal
• Compressed Air Connection: 6 bar (90 psi)
• Power Supply: 100/115 VAC, 230/240 VAC, 300 VA, 50/60 Hz
• Noise Level: <70 dB (A)
• Dimensions (L x W x H): 690 x 370 x 330 mm (27.2” x 14.6” x 13.0”)
• Weight: 48 kg (106 Ibs.) / Gross: 56 kg (124 Ibs.)
• Blade: 4 universal blades
