JS8310
JS8310

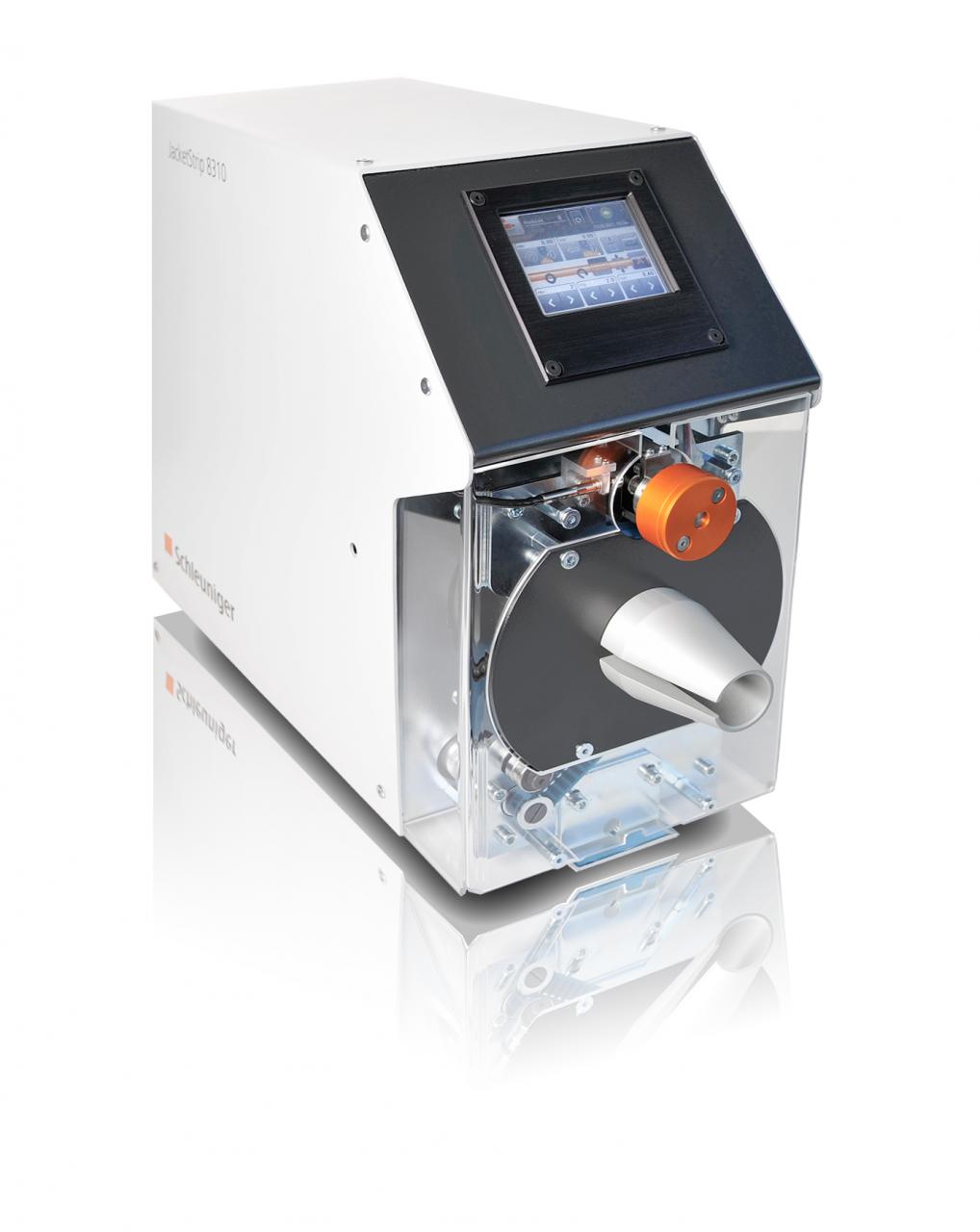

The JacketStrip 8310 axially and radially slits the insulation of out-of-round and multiconductor cables from 2.5 – 25 mm (0.1″ – 1”) O.D. and up to 500 mm (19.7″) in stripping length without any damage to the inner conductors or shielding.
• Processing of out-of-round and twisted pair cables
• No blade changes required
• Intuitive programming via color touchscreen
• Digital display of axial and radial blade depths
• Universal 4-jaw cable centering system with wayback function
• Barcode scanning function
Adjustable Processing Parameters
• Blade depth: Radial/axial blade
• Stripping position
Programmable Processing Parameters
• Rotational speed of the stripping head
Features
• No blade changes required
• Universal 4-jaw cable centering system with wayback function
• Intuitive programming via color touchscreen
• Digital display of axial and radial blade depths
• Barcode scanning function
JS8310
INformações do produto
• Raw Material Diameter: 2.5 – 25 mm (0.1 – 1.0”)
• Diameter Precision: +/- 0.03 mm (0.001”)
• Strip Length: adjustable from 10 – 500 mm (0.4 – 19.7”) – (infinite length without scale)
• Cycle Time: At least 2 s (depending on processing mode and stripping specifications)
• Blade: 1 universal radial blade / 1 universal axial blade
• Raw Material Type: PVC, PUR, rubber, Teflon, Tefzel, Kapton, etc.
• Interfaces: Foot pedal, USB “Host”, I/O
• Compressed Air Connection: 6 bar (90 psi)
• Power Supply: 100/115 VAC, 230/240 VAC, 300 VA, 50/60 Hz
• Noise Level: <70 dB (A)
• Dimensions (L x W x H): 470 x 190 x 355 mm (18.5″ x 7.5″ x 13.9”) – Without guide tube for length scale
• Weight: 26.5 kg (58 lbs)
• CE Conformity: The JacketStrip 8310 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
