• Raw Material Diameter: Tube Cutting Head Max. 12.7 mm (0.5”) / Cable Cutting Head Max. 10 mm (0.39”)
• Conductor Cross-Section: Stranded Wire Max. 6 mm2 (8 AWG) / Solid Wire Max. 4 mm2 (12 AWG)
• Feed Rate: Max. 3.20 m/s (10.6 ft/s)
• Pulling Force: 50 N
• Length Increment: 0.1 mm (0.004”)
• Interfaces: Standard: Prefeeder, Hotstamp, RS232, Foot Pedal / Optional: Postfeed-Interface (CableCoiler 500)
• Options: Tube guides in 0.5 mm increments from 2.0 – 13.0 mm. Custom tube guides, Custom blades
• Noise Level: <70 db (A)
• Power Supply: 100 V, 115 V, 230 V or 240 V (50/60 Hz)
• Dimensions (L × W × H): 400 × 250 × 260 mm (15.7 x 9.8 x 10.2”)
• Weight: 17 kg (38 lbs.)

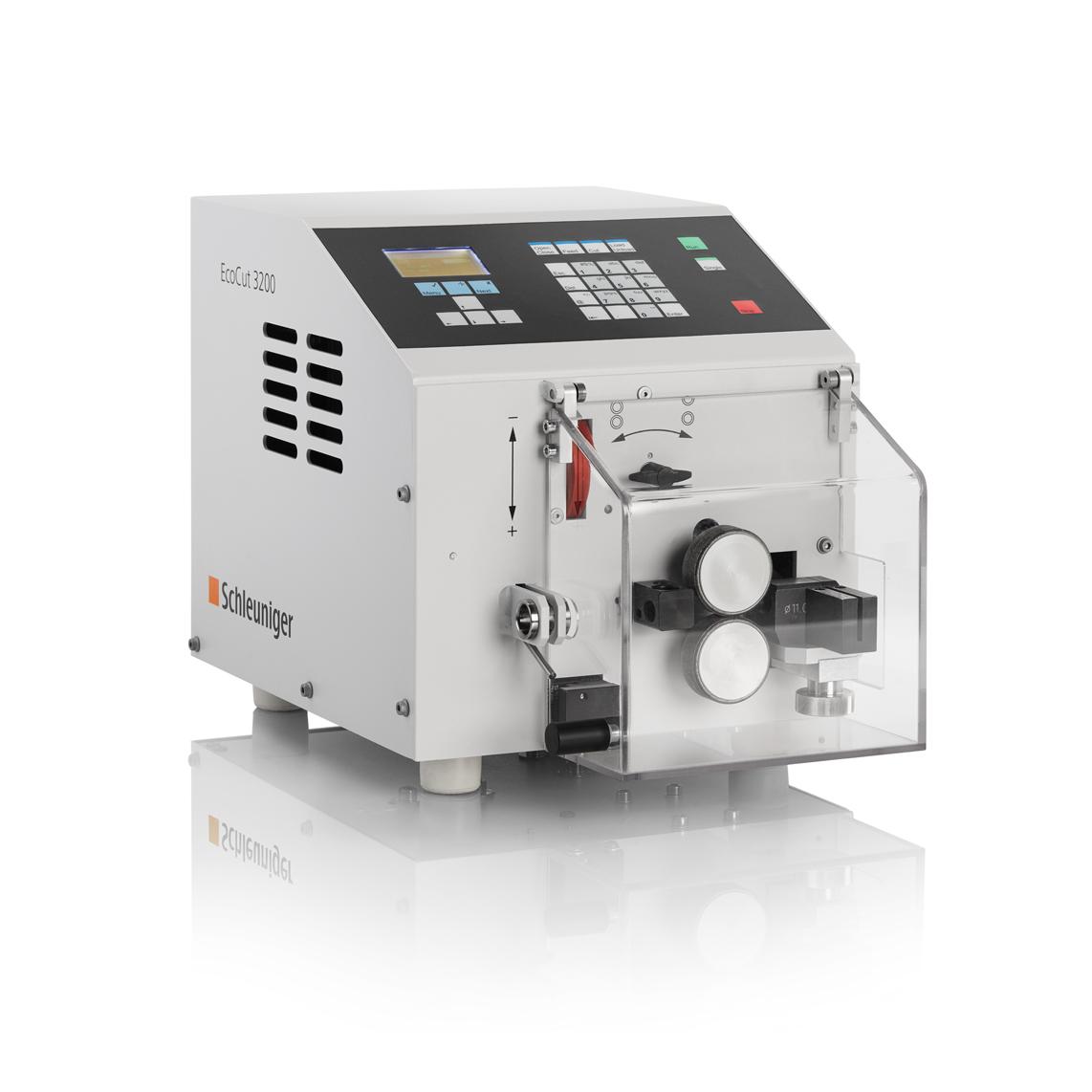

• CE-Conformity: The EcoCut 3200 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electro-magnetic compatibility.
• Important Note: Schleuniger recommends that wire / tube samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
