CC1300

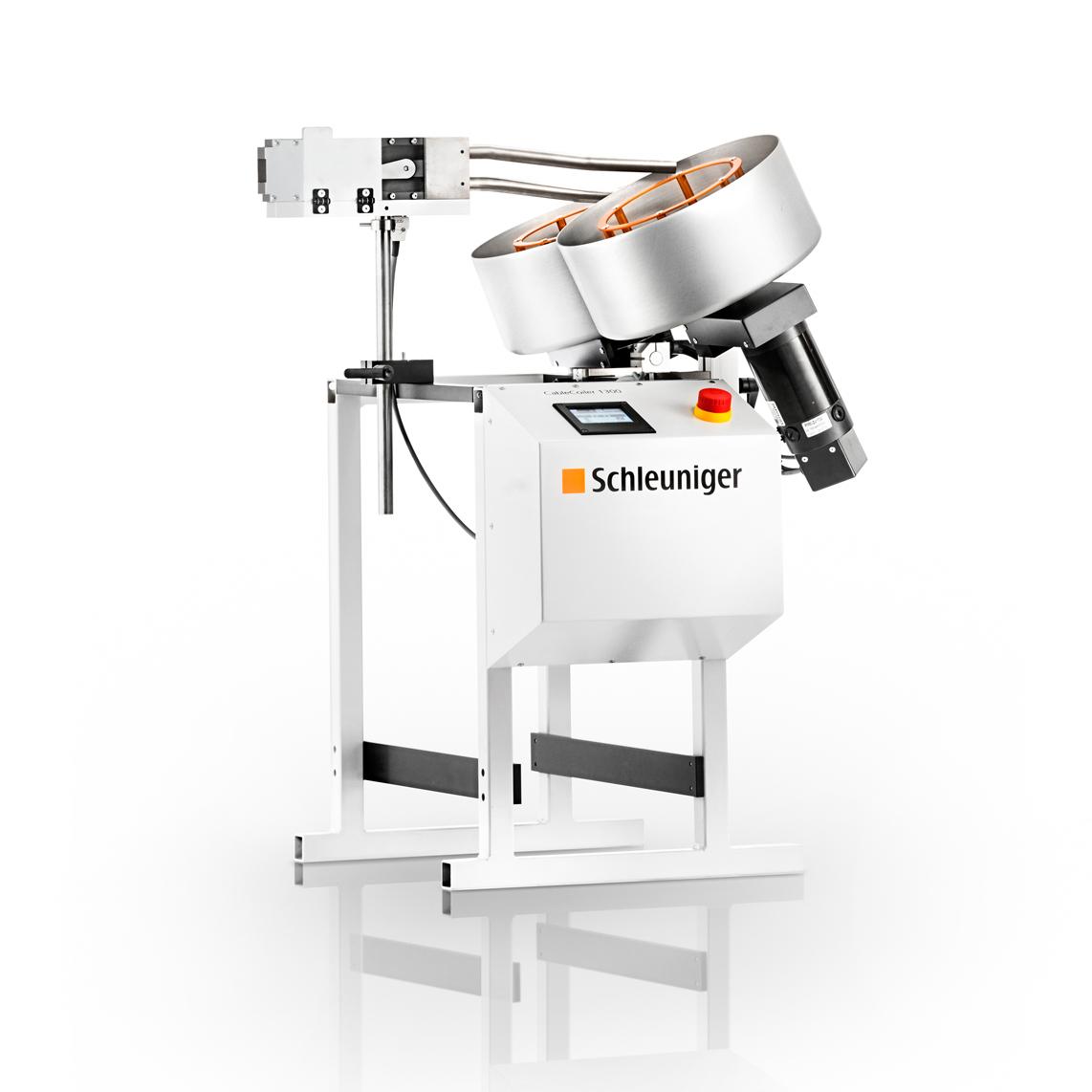

The CableCoiler 1300 is a stand-alone, fully synchronized, high performance cable coiler for cut and strip machines. It coils all types of round cable with a maximum outer diameter of 12 mm (0.47″). Coiling diameters from 110 – 230 mm (4.33 – 9.06″) and coil weights up to 10 kg (22.05 lbs.) allow for flexible production.
• High performance due to full synchronization
• Very short changeover time between different jobs
• Favorable price/performance ratio
• Simple operation with touchscreen
• Easy handling of coils

Features
• High speed coiler for stranded wires and multi-conductor cables as well as for fiber optic cables
• Non-productive time is minimized thanks to two stations and short changeover times between the coiling stations
• High dynamic performance and full synchronization with the processing machine
• Simple operation with well arranged intuitive touchscreen
• Maintenance-free machine design, fully electrically driven

CC1300

INformações do produto

• Coiling Unit: 2
• Workpiece Length: From 1,800 mm (70.86″) Depending on the cable diameter
• Coil Diameter: Standard: 110 – 310 mm (4.33 – 12.2″) / Optional: 81 – 152 mm (3.18 – 5.98″)
• Coil Height: Maximum 100 mm (3.93″)
• Coil Weight: Maximum 10 kg (22 lbs.)
• Coiling Speed: Standard: 8.0 u/sec (2.8 – 5.8 m/s) / Optional: 14.4 u/sec (3.6 – 6.9 m/s)
• Interfaces: PPI (fully synchronized), foot switch, emergency stop link
• Options: Lockable machine rollers, coiling pans 152/81 mm (6.0“ / 3.2“), coiling disc for fiber optic cables
• Power Supply: 230/240 VAC/50 Hz, 100/115 VAC 50/60Hz switchable
• Dimensions (L x W x H): 700 x 750 x 1,100 mm (27.5 x 29.5 x 43.3″)
• Weight: 47 kg (103 lbs.)
• CE-Conformity: The CableCoiler 1300 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
• Important Note: Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
